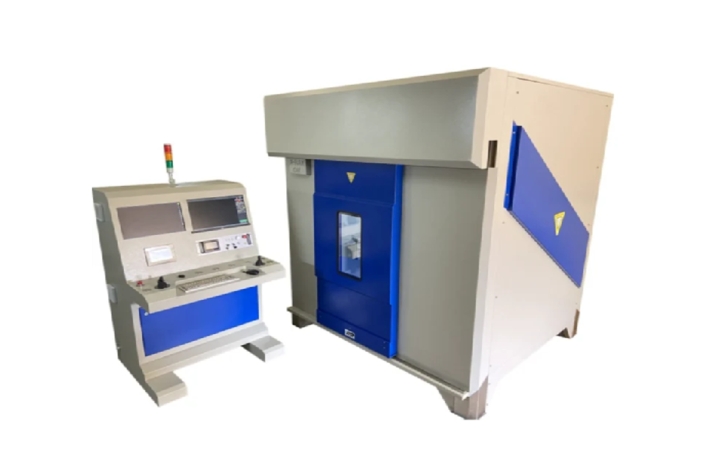

For Aluminium Parts
Reliable inspection for precision aluminum components.
These machines are designed for high-resolution inspection of cast and fabricated aluminum components, ensuring structural integrity and quality.
They are ideal for use in automotive, aerospace, defense, and industrial manufacturing sectors.
These systems offer advanced image clarity, digital archiving, and easy operation.
Whether for inline inspection or R&D testing, this machine provides reliable non-destructive testing (NDT) solutions.
Model No. - PSIPL IXM-A500
- APPLICATION - Inspection of Aluminum Castings & Parts
- TECHNOLOGY - High-Resolution Digital Radiography
- MODE - Manual and Automated Options Available
- X-Ray Source: 160 KV – 320 KV (adjustable based on requirement)
- Detector Type: Flat Panel Digital Detector
- Max Object Size: Up to 600mm x 600mm x 800mm
- Penetration Capability: Up to 40mm aluminum
- Image Processing: Real-time enhancement, zoom, contrast adjust
- Rotation / Movement: 3-Axis adjustable with precision motorized controls
- Power Requirement: 220V AC, 50Hz, 3 Phase
- Cooling Type: Oil or Air cooled (based on model)
- Control Interface: Touchscreen with PC Integration
- Software: Custom Imaging & Reporting Software
- Safety Standards: Meets AERB and international X-ray safety norms
- Weight: Approx. 800 Kg

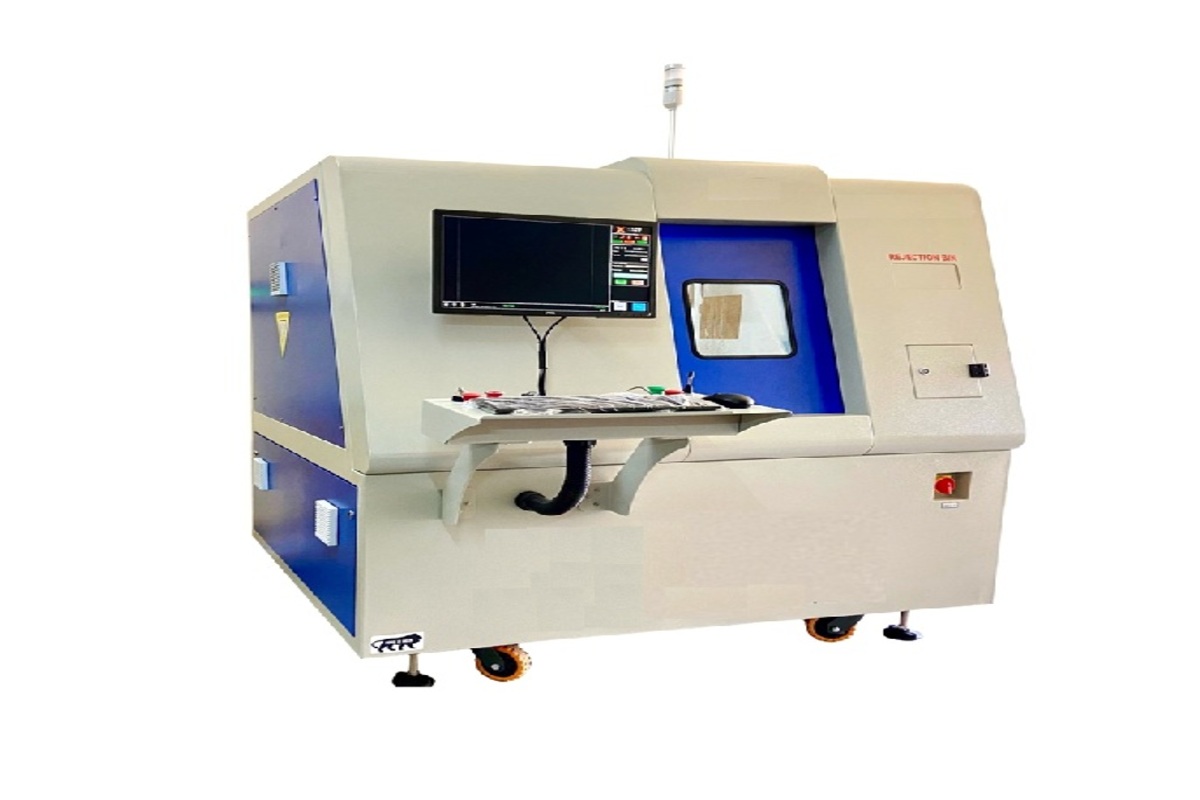

For Electrical Assembly Industries
Ideal for inspecting internal circuits, joints, and PCBs.
The advanced **Industrial X-ray Machines** tailored for the inspection and quality control of **electrical assemblies**.
These machines help identify internal faults such as solder defects, missing components, wire bonding errors, and short circuits—without dismantling the device.
Widely used in switchgear, PCB manufacturing, control panels, and electrical product assembly lines, our X-ray systems enhance product reliability and ensure compliance with international standards.
Model No. - PSIPL-EXA 5030
- APPLICATION - Inspection of Electrical Components and Assemblies
- INDUSTRIES SERVED - PCB, Switchgear, Control Panels, Automotive Electrical
- IMAGING TYPE - Microfocus Digital Radiography (DR)
- Pinpoint detection of solder bridges, voids & missing elements
- Suitable for multilayer boards and small components
- X-Ray Source: 100–160 kV Microfocus Tube
- Detector Type: High-Resolution Digital Flat Panel
- Component Size Range: From 1 mm to 300 mm
- Magnification: Up to 100x optical zoom
- Resolution: Up to 2 microns
- Software Features: Auto defect detection, BGA analysis, 3D slice view
- Radiation Safety: Fully Shielded Cabinet, AERB Certified
- Power Supply: 230V AC, Single Phase, 50Hz
- Weight: Approx. 600 Kg

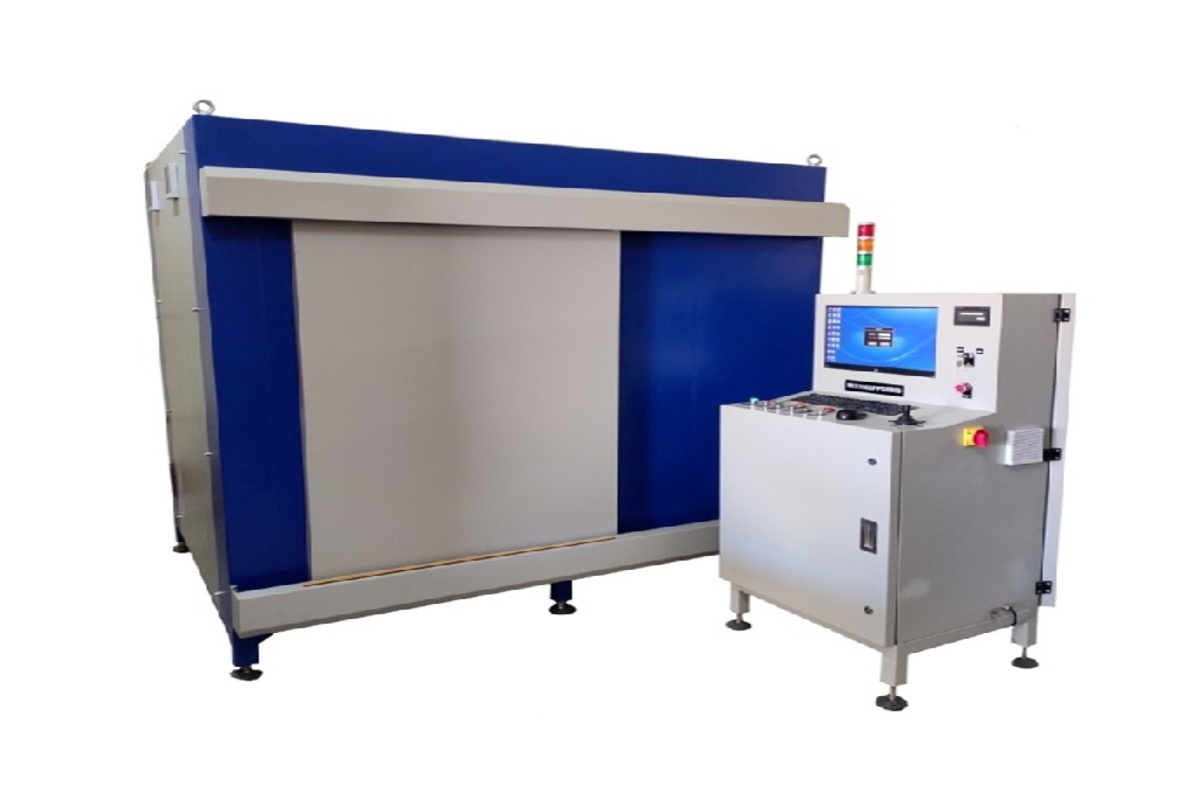

For Inspection of Epoxy Parts
Ensures void-free encapsulation in epoxy-based components.
These **Industrial X-ray Machines** specially designed for the Inspection of Epoxy Parts.
These systems are built to perform
non-destructive testing (NDT) of epoxy-encapsulated components, ensuring quality control and internal defect detection without damaging the product.
Epoxy parts used in electronic assemblies, insulators, transformers, and automotive parts often require high precision inspection. These X-ray systems offer superior image clarity, detecting internal cracks, air bubbles, and voids commonly hidden within epoxy resin structures.
Model No. - PSIPL IXM-E400
- APPLICATION - Non-destructive inspection of epoxy-filled parts
- COMMON USE CASES - Transformer components, epoxy insulators, potted electronics
- IMAGING METHOD - Digital Radiography (DR)
- Enables void and bubble detection inside epoxy
- Custom fixturing for varying epoxy part geometries
- X-Ray Source: Microfocus X-Ray Tube, 90–200 kV
- Detector Type: Flat panel digital detector
- Inspection Volume: Up to 400mm (H) × 300mm (W)
- Resolution: Up to 50 μm spatial resolution
- Penetration Capacity: 20–25 mm of epoxy resin
- Control System: PC-Based with imaging and defect analysis software
- Power Requirement: 230V AC, Single Phase, 50Hz
- Cooling: Air cooled / Oil cooled based on model
- Radiation Safety: Lead Shielding as per AERB Guidelines
- Weight: Approx. 550-600 Kg
