Integral & Modular Angle Heads
2 Ranges & more than 200 Models available
Ideal for MILLING, DRILLING & TAPPING OPERATIONS
Features
The Geradi SPA is the first Italian company to design and develop a complete Steel Modular Workholding System.
- Integral case hardened and ground shank & shaft and made in 1 piece.
- Positioning pin with automatic release.
- Standard 10BAR coolant through the pin
- Modular antirotation group
- Graduated ring
Angle Heads Types
232 models of angle heads that can be split in two different ranges,

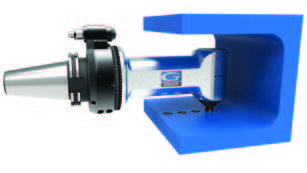

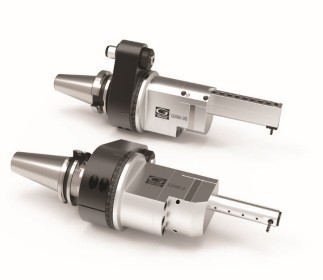

Classic Line - Integral Angle Heads
- For traditional machine tools with flange attachment.
- Composed of 141 models.
- Reduced Set-Up Time & Possibility of offline tool presetting
-
MTC SERIES - This is a range of heads for traditional machine tools with
flange attachment.
The T-slot on the universal flange facilitates positioning the head 360° around its vertical axis.
- Extremely compact dimensions.
- Uncomparable performances & reliability

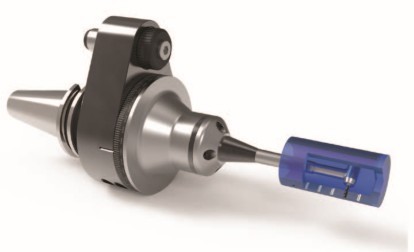

- Special Length - tool dimensions Ø1,6-Ø3mm
- Allow machinings in spaces impossible to reach.
- Interchangeable Spindle
- Ideal for deburring & countersinking, drilling and light milling in the smallest of spaces.
- Angle handpieces are designed to operate at very high speeds.
- Modular quick-connect coupling allows quick and complete interchangeability of all handpieces on the same head.

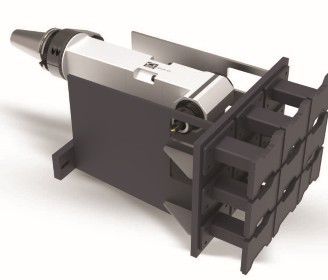

- Length Increased for In-Depth Machinings

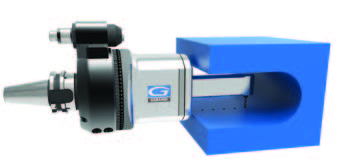

Evolution Line - Modular Angle Heads
- Designed for milling and drillling operations.
- Composed of 91 models.
- Ideal for Micromachining in narrow spaces
- Ideal for milling, drilling and tappint at ±90°.
- With coolant input from the main positioning pin
- Output through the tool at 10bar

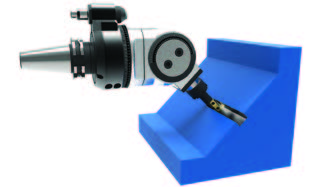

- Angle heads series with adjustable angle from 0 ± 90°.
- Angle Heads series for milling drilling and tapping through 2 opposite outputs.

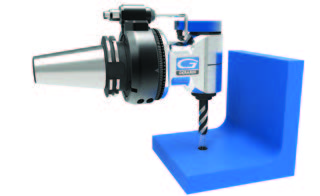

- Machining in narrow spaces with coolant input directly from machine spindle
- Output through the tool at 70 BAR
